CENTRAL AIR CONDITIONING - FRIGIDAIRE CONDENSER

THIS IS RECOMMENDED CONDENSER FOR THIS AIR HANDLER.
CONDENSER IS NOT INCLUDED WITH THE UNIT, YOU HAVE TO BUY THE CONDENSER SEPARATELY TO MAKE A COMPLETE SYSTEM. TO BUY THE CONDENSER ALSO, USE THE COMPLETE CENTRAL SYSTEM LINK ON OUR MAIN PAGE INSTEAD.

Permanently Lubricated Motor: Heavy-duty PSC motor for long-lasting reliability and quiet operation. Composite Base Pan: Absorbs sound and resists corrosion. Louvered Condenser Guard: Durable metal to protect the unit from yard hazards and extreme weather. Removable Top Grille Assembly: Allows ease of service from the top without disconnecting fan motor leads. High Pressure Switch: Protects against abnormally high system pressures. Auto-reset feature prevents nuisance service visits. Liquid Line Filter Drier: Included with unit; field installed. One-Piece Top/Orifice: Designed for maximum airflow and quiet operation. Easy Compressor and Controls Access: Designed to make servicing easier for the contractor.

Frigidaire has developed a full line of air conditioners, heat pumps and accessories to allow you to maintain total home comfort year round. What having a 13-16 SEER air conditioner or heat pump means. Your air conditioner or heat pumps’s efficiency is measured by a Seasonal Energy Efficiency Ratio (SEER). The higher the SEER rating, the more efficiently your unit operates. Increased efficiency translates into savings in utility costs. Frigidaire fits your life. • Delivering peace of mind unit after unit. Every unit is triple checked at each manufacturing stage, for an average of 144 quality checks as your unit is built. In addition, all electrical and mechanical components are 100% fired and tested on the manufacturing line. When your dealer arrives, you can be sure that only the highest quality air conditioner or heat pump is being delivered to your home. • Extending the life of your unit. High quality doesn’t just happen. It must be engineered from the start. All air conditioners and heat pumps are designed for maximum compressor performance. • Total comfort never felt so good or sounded so quiet. Great airflow and quiet performance are part of the Frigidaire comfort equation. • Aesthetically pleasing and designed for easy care. Smooth and practical lines make your Frigidaire air conditioner or heat pump eye-appealing. All outdoor units are finished with a Silicone protective polyurethane finish that passed a 950-hour salt spray test. This step protects your unit from corrosion 50% more than standard outdoor finishes. • Built to last. From a long-lasting motor to the one-piece orifice, your unit will provide years of trouble-free and reliable service.

A compressor you can count on. Your Frigidaire air conditioner or heat pump has been carefully designed and engineered to give you outstanding energy efficiency and years of trouble-free operation. Frigidaire uses only proven components like the Copeland® scroll compressor. It’s the leaders’ choice for efficiency, durability, and longevity. 16 SEER products feature a two-stage Ultra-tech scroll compressor. Two-stage technology allows your air conditioner or heat pump to operate at the most efficient level for total indoor comfort regardless of the outside temperature.

The benefits of two-stage cooling. Two-stage cooling products maintain a more consistent comfort level throughout your home. During the first stage, which is about 80% of the time, the unit will use about 68% of its cooling capacity. It will always start in the first stage and attempt to meet the cooling demand. This reduced capacity is enough to efficiently cool your home on mild summer days. When the temperature rises the air conditioner or heat pump automatically adjusts itself and enter the second stage to meet the increased cooling demand. A two stage, variable-speed unit runs for longer cycles and will remove up to six times more moisture than a conventional unit. The result is a more comfortable environment even at a higher thermostat setting. Thanks to two-stage technology, the temperature in your home will only vary a couple of degrees and you will experience quiet comfort. Efficient operation is what two-stage cooling is all about. Since your unit runs at the stage needed based off demand, you never pay for energy that is not needed.

Heat pump or air conditioner. Split systems have two main components. The outdoor section is the air conditioner or heat pump. The indoor section consists of a matched air handler or coil. These two sections work together to provide top performance, maximum efficiency and comfort. Benefits of a heat pump. Depending on the climate you live in a heat pump may be ideal for your family. Heat pumps work similar to a conventional air conditioner, with one big exception; they also provide heat in the winter. You can save 30% to 60% on energy usage during the winter months by switching to a heat pump.

RECOMMENDED OUTOOR UNIT INSTALLATION GUIDEClick Here (a pdf file will open in new window)

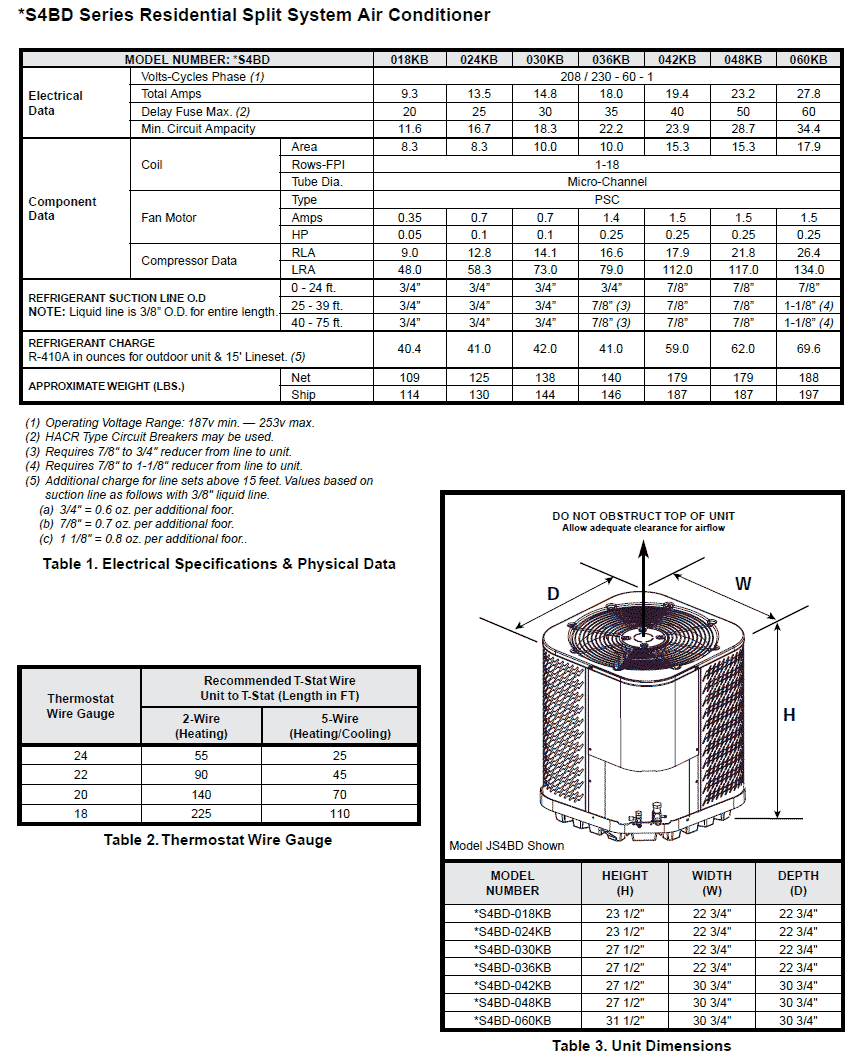

RECOMMENDED OUTDOOR UNIT SPEC SHEET GUIDE Click Here (a pdf file will open in new window)
RECOMMENDED OUTDOOR UNIT WIRING DIAGRAM? Click Here (a pdf file will open in new window)

AIR HANDLER SPECIFICATION GUIDE Click Here (a pdf file will open in new window)
AIR HANDLER INSTALLATION GUIDE Click Here (a pdf file will open in new window)
AIR HANDLER WIRING DIAGRAM Click Here (a pdf file will open in new window)

WHY BUY R410 Refrigerant Click Here (a pdf file will open in new window)
