5 TON UNIT
2 Stage Package Unit
ELECTRIC HEATER - OPTIONAL

SEER 15
NOT A HEAT PUMP

Model# P5RFX60K
Reg Price: $4872
Your Price: $2690
BRAND NEW!



  • Copeland Scroll UltraTech Compressor™: Proven and simple compressor design for years of reliability; two stages of cooling capacity.
  • Optional Backup Heat: Electric heat strip provides up to 20 kw of heat output.
  • High Pressure Switch: Protects against abnormally high system pressures. Auto-reset feature prevents nuisance service visits.
  • Liquid Line Filter Drier: Included with unit; field installed.
  • 5-Minute Restart Time Delay: When the unit shuts down, a 5-minute delay keeps the unit from restarting, eliminating the highest cause of compressor failures.
  • Demand Defrost Standard: Provides additional energy savings in heating by defrosting only when necessary.
  • Suction Accumulator: Prevents compressor failures caused by liquid flood back.
  • Easy Compressor and Controls Access: Designed to make servicing easier for the contractor.

Frigidaire has developed a full line of packaged air conditioners and heat pumps, gas/electric packs and accessories to allow you to maintain total home comfort year round.


Frigidaire fits your life.

FEATURES and BENEFITS

Quaiity Compressor: State of the art scroll compressor is standard equipment.

R-410A Refrigerant: Earth friendly non-ozone deplet-ing refrigerant.

Hi/Low Pressure Switches: Ensure long compressor life.

Copper Tube / Aluminum Fin Coils: Both indoor and outdoor coils are designed to optimize heat transfer, minimize size and cost, and increase durability andreliability.

Permanently Lubricated Condenser Motor: A heavy duty PSC motor for long lasting reliability and quiet operation. Requires no maintenance and is completely protected from rain and snow.

Low Voltage Transformer: Includes 3 Amp fuse to protect low voltage circuit.

Liquid Line Filter Driers: Factory installed at a convenient location for service.

Designed Using Galvanized Steel: With a polyester urethane coat finish. The 950 hour salt spray finish is 1.5 mil thick and resists corrosion 50% better than comparable units.

Compact Footprint and Profile: Make the P5 Series easy to install and transport.

0” Clearance: To combustibles on duct side of the unit allows for installations in tight areas.

Wire Guard Coated with Earth Friendly Epoxy and Plastic Mesh Hail Guard: A guard that will never rust and protects the units coil from being damaged.

Raised Base Pan: Allows water to drain away from the unit.

Easy Compressor and Control Access: Designed to make servicing easier for the contractor, access panels are provided to all controls and the compressor from the side of the unit. Hi/low service ports allow access without disrupting operation.

Easy Access: To the evaporator coil for cleaning and general maintenance.

Drain Trap: Design optimizes drainage capabilities.

Removable Top Grille Assembly: Allows ease of service to the fan motor.

Duct Collars: Reduce installation costs.

Optional Electric Heat: Field installed 5 – 20 KW.

Delivering peace of mind unit after unit. Every unit is triple checked at each manufacturing stage. This is an
average of 72 quality checks as your unit was built. In addition, all electrical and mechanical components are 100% fired and
tested on the manufacturing line. You are assured the highest quality packaged system being delivered to your home.

Extend the life of your unit.
High quality does not just happen. It must be engineered from the start. All packaged
systems are designed for maximum performance.

Total comfort never felt so good or sounded so quiet. Great airflow and quiet performance are part of the
Frigidaire comfort equation.





2 STAGE PACKAGE UNIT - CENTRAL AIR CONDITIONING - FRIGIDAIRE BRAND




FRIGIDAIRE HORIZONTAL PACKAGED AIR CONDITIONER FEATURES and BENEFITS

• Quality Compressor: State of the art scroll compressor is standard equipment.
• R-410A Refrigerant: Earth friendly non-ozone depleting refrigerant.
• Hi/Low Pressure Switches: Ensure long compressor life.
• Copper Tube / Aluminum Fin Coils: Both indoor and outdoor coils are designed to optimize heat transfer, minimize size and cost, and increase durability and reliability.
• Permanently Lubricated Condenser Motor: A heavy duty PSC motor for long lasting reliability and quiet operation. Requires no maintenance and is completely protected from rain and snow.
• Low Voltage Transformer: Includes 3 Amp fuse to protect low voltage circuit.
• Liquid Line Filter Driers: Factory installed at a convenient location for service.
• Designed Using Galvanized Steel: With a polyester urethane coat finish. The 950 hour salt spray finish is 1.5 mil thick and resists corrosion 50% better than comparable units.
• Compact Footprint and Profile: Make the P5 Series easy to install and transport.
• 0” Clearance: To combustibles on duct side of the unit allows for installations in tight areas.
• Wire Guard Coated with Earth Friendly Epoxy and Plastic Mesh Hail Guard: A guard that will never rust and protects the units coil from being damaged.
• Raised Base Pan: Allows water to drain away from the unit.
• Easy Compressor and Control Access: Designed to make servicing easier for the contractor, access panels are provided to all controls and the compressor from the side of the unit. Hi/low service ports allow access without disrupting operation.
• Easy Access: To the evaporator coil for cleaning and general maintenance.
• Drain Trap: Design optimizes drainage capabilities.
• Removable Top Grille Assembly: Allows ease of service to the fan motor.
• Duct Collars: Reduce installation costs





2 STAGE PACKAGE UNIT INSTALLATION GUIDE Click Here (a pdf file will open in new window)

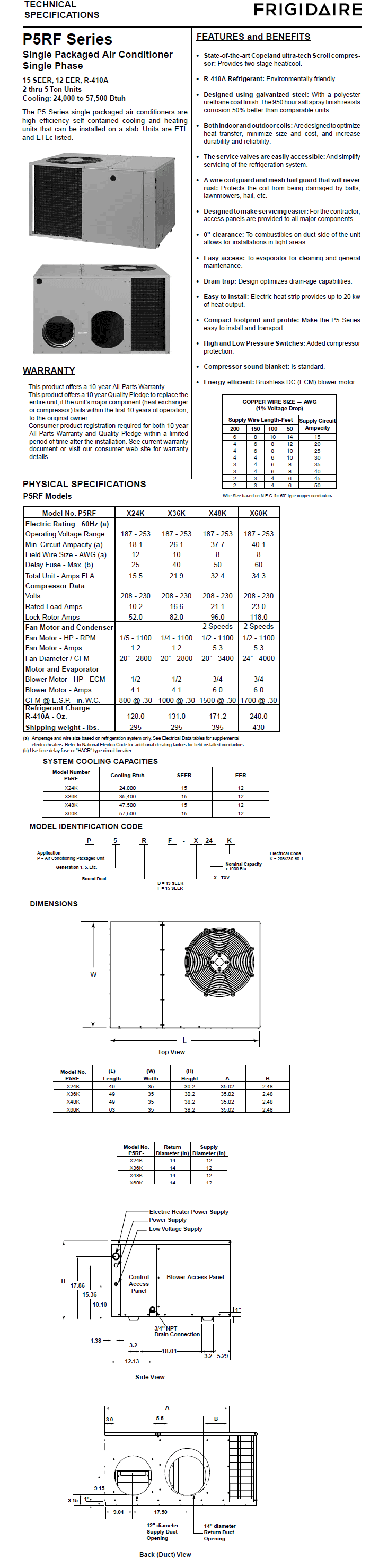

2 STAGE PACKAGE UNIT SPEC SHEET GUIDE Click Here (a pdf file will open in new window)
2 STAGE PACKAGE UNIT WIRING DIAGRAM? Click Here (a pdf file will open in new window)
2 STAGE PACKAGE UNIT USER MANUAL FRIGIDAIRE Click Here (a pdf file will open in new window)
2 STAGE PACKAGE UNIT BROCHURE FRIGIDAIRE Click Here (a pdf file will open in new window)


FRIGIDAIRE BROCHURE Click Here (a pdf file will open in new window)

WHY BUY R410 Refrigerant Click Here (a pdf file will open in new window)
