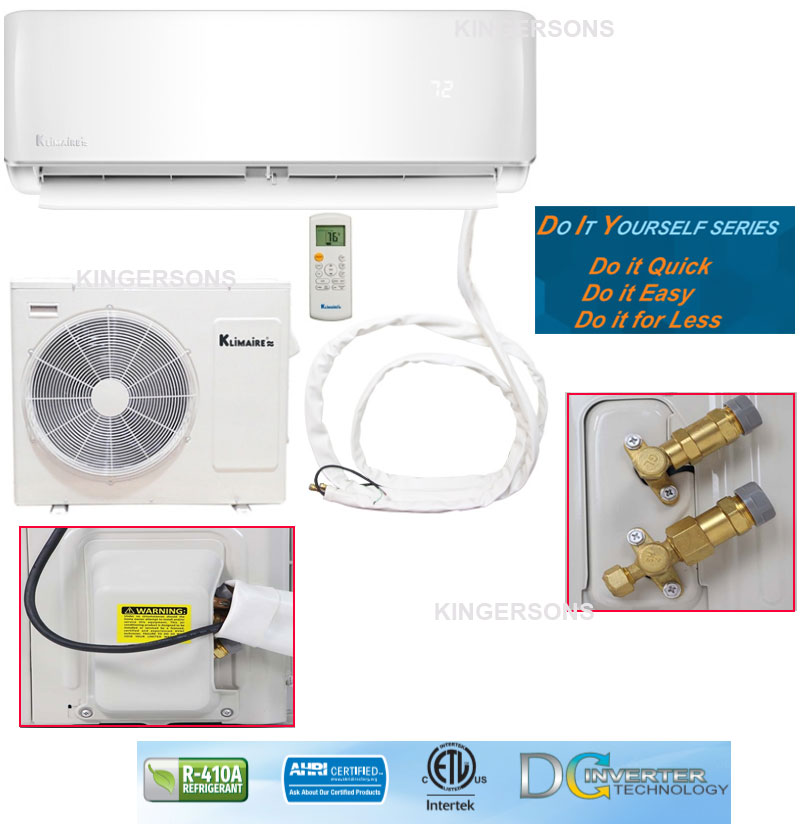

Klimaire KSIQ Series Mini-Split System Delivers Comfort & Savings

Klimaire’s newly launched KSIQ Series ductless mini-split air conditioner heat pumps focus on technology that protects your system and puts absolute comfort at your fingertips. A microprocessor in the main electronic control board is the brain of the system. It allows you to enjoy the full range of high efficiency with the LED remote control. You can expect lower energy bills due to the system’s high efficiency 17.5 SEER rating. On top of that, built-in system safeguards including self-diagnostics/error code display and refrigerant leak detection make maintenance simple.

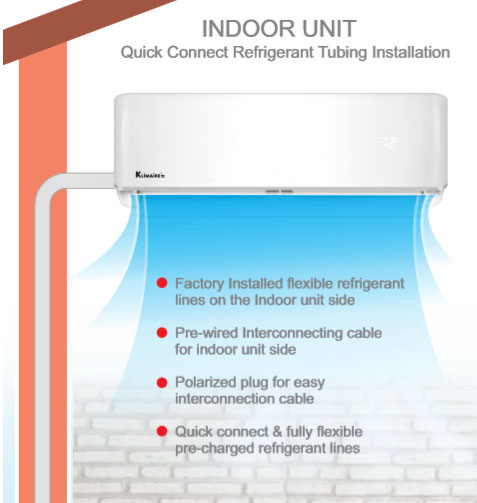

Quick & Easy Installation

With our quick connect installation kit it is very quick & easy to install your system and start enjoying the comfort your Klimaire unit brings to you. Fully quick connect of pre-charged Refrigeration lines and plug-in electrical interconnecting wires.

The Quick Connect installation kit come with:

• Gas pipe with PVC plastic sleeve protection
• Liquid pipe with metal mesh sleeve protection
• Indoor and outdoor unit connect wire

 Inverter Technology

With DC inverter variable speed technology, frequent thermostat adjustments become a thing of the past. Just choose a setting on your thermostat once and the system will auto regulate the compressor to deliver the right amount of heating and cooling to keep the room temperature steady. Inverter technology combined with air conditioner heat pump can generate energy savings up to 49% compared to standard on/off systems. Finely tuned climate control offers the added benefits of less system wear and tear and whisper quiet operation.

KSIQ012-H118-I | Indoor Unit

The remote control allows for manual operation of the unit when necessary. With the new “Quick-Hook Design,” the wall unit hangs easier and faster.

• 3D air flow technology distributes the air evenly throughout the room.
• 24 hour timer and memory function
• Turbo mode for fast heating & cooling

KSIQ012-H118-O | Outdoor Unit

Automatic defrost prevents condensation from freezing and damaging the compressor. The built-in base pan heater ensures reliable operation in low temperatures. A built-in compressor heater ensures compressor longevity and reliability. Compact outdoor unit requires little ground space and can be mounted to a wall with wall brackets (not included).

Features

• COP (Coefficient Heating Performance): 3.06
• EER (Energy Efficiency Rating): 10
• Auto restart in cases of power outages
• Sleep mode adjusts temperature so you fall asleep faster and stay asleep
• Anti-cold air function
• Indoor unit has multi-refrigerant outlet pipes: left/right/rear
• ON/OFF programmable timer
• Quick Connect installation kit

Applications

• Sunrooms
• Greenhouses
• Indoor gardens / hydroponic gardening
• Room additions
• Renovations
• Family rooms
• Wine cellars
• Garages/workshops

WHAT’S INCLUDED
Your Klimaire KSIQ Ductless Mini-Split Inverter Air Conditioner Heat Pump System from Heat & Cool Comes With:

• KSIQ012-H118-I | Indoor Unit
• KSIQ012-H118-O | Outdoor Unit
• Remote control with wall bracket holder
• Indoor unit wall mounting bracket
• Quick Connect Installation Kit
• Installation Manual
• User’s Manual
• Manufacturer Warranty

MANUFACTURER WARRANTY

• 1 year parts limited warranty
• 5 years compressor limited warranty

SYSTEM SPECIFICATIONS

SPECIFICATIONS FOR MODEL: KSIQ012-H118-IW(Q)

SPECIFICATIONS FOR MODEL: KSIQ012-H118-O(Q)

About Klimaire

WARRANTY FROM THE MANUFACTURER

· 5-year on compressor and 1-year other parts.
* Registration card will be sent in the package; this card should be filled by HVAC technician (installer). A lot of customers have called us asking if they install the unit without the licensed AC Company, will their warranty be void? Answer to that question is Yes. Unfortunately no brand or manufacturer can take the responsibility of the equipment if it was not professionally installed.

Kingersons Store Warranty: If anything defective or damaged upon delivery contact Kingersons within 15 days. Kingersons at that point will provide free replacement. After first 30 days, your warranty for parts and compressor is moved from Kingersons to the Manufacturer.
Manufacturer warranty: Once the warranty rolls over to the manufacturer, you will have a toll free number for your tech support for any assistance you may need with the product in future. On Air Conditoners you will receive five years on compressor and one year on parts from them.
TIP: Installing a split AC is easy for any AC company, but can get tricky for a homeowner. In many cities it is illegal to touch a refrigerant and perform other such activities without a license. We as a company cannot encourage a customer to install the split AC, but have seen a lot of customers do it in the past. At the same time we have seen some customers installing the unit unprofessionally without performing all the necessary steps, which resulted in issues with the AC unit within the first 3 months.

In short, you can do all the handyman work yourself but can hire an AC company to finish the important process on the Split unit. For example you can drill the hole in the wall, hang the indoor unit on the wall carefully and then place the outdoor unit outside on a concrete pad or a flat surface. But there are some steps you cannot perform, as you do not have tools for it. Which is where your AC Company gets involved to finish all the necessary steps. For example they will need to vacuum the lines, check for the leaks and then release the refrigerant.
Also, remember no matter how good of an install kit the manufacturer provides, these steps are a must for a successful split AC installation. Some company's selling split AC will make you believe their installation kit is quick connect, which means you do not have to have a AC company to install it. But that is not true. Our install kits are “quick connect” too, but any thing can go wrong during the shipment or the parts in the package. For example the copper lines may have a small hole from manufacturing defect. So for example if the lines are not tested for leaks, the refrigerant will leak slowly after installation and within 1-2 months your AC will stop working and you will end up paying $500 or more to have more refrigerant added. So it is worth having it installed the right way to begin with. Your local AC Company can charge you on an hourly basis and above-mentioned process should not take more than 1-2 hours. But if they install the whole unit from scratch to finish, number of hours can vary depending upon each individual situation. This process will not only ensure you have a working split AC for a long time, but at the same time you will have an energy efficient AC that saves you electricity bills as well.
