Product Name :

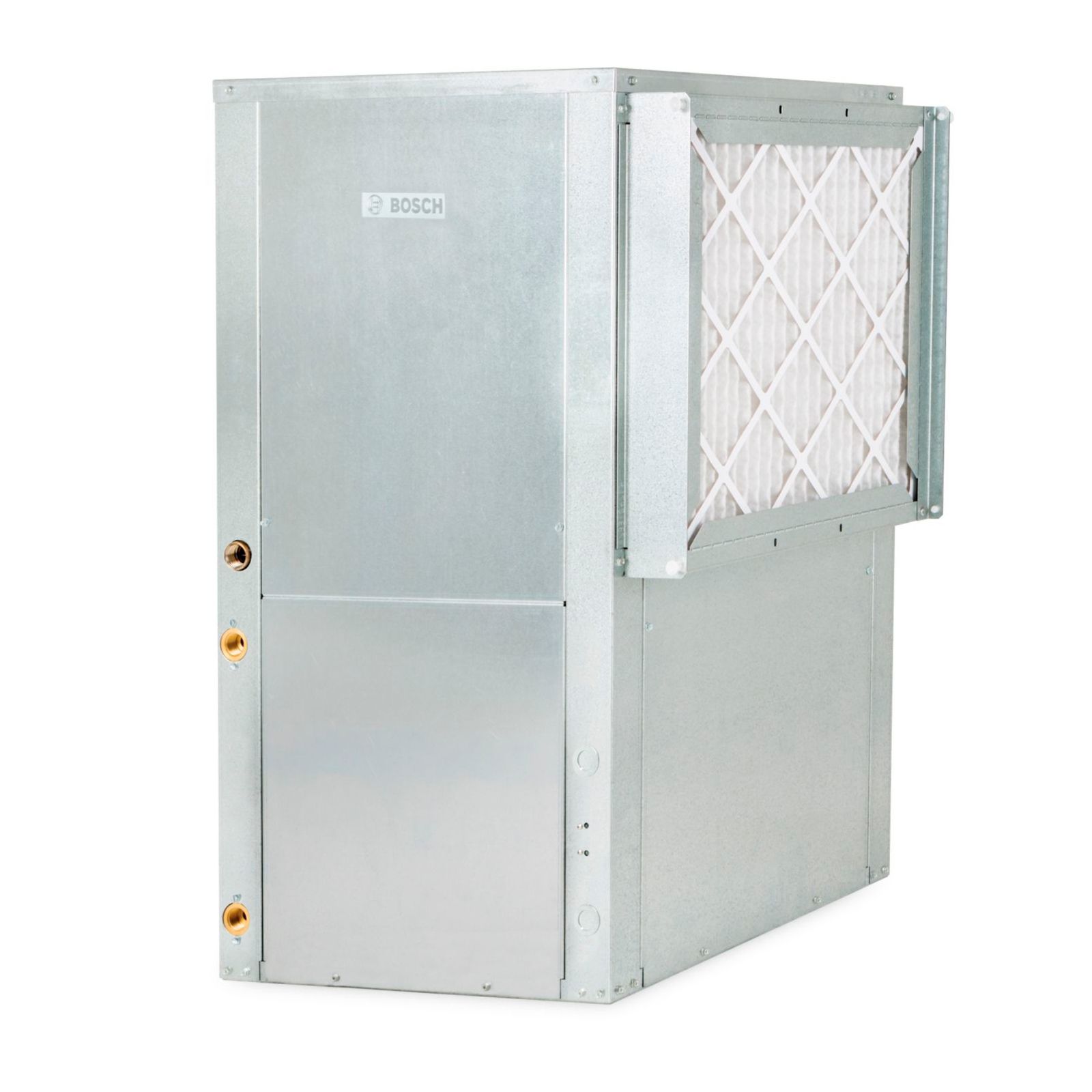

Bosch 7-735-071-569 - SV024-1VTC-FRTPDD Water Source Heat Pump, 24,300 BTU, 14.2 EER, Vertical, Right Return, 208-230/1
|
|
|
|
Item# :
|
SV024-1VTC-FRTPDD
|
|
|
|
|
Choose QTY
:
|
Required
|
|
|
|
|
|
Model SV 2 Ton VT Cu 208-230/1/60Hz R Return Top PSC DuoGuard Standard Cabinet TXV Application Std Filter
The SV model is a cost-effective single stage water source heat pump designed for residential and light commercial retrofit and new construction applications.
Standard Features:
Available in Horizontal and Vertical Cabinets- Constructed using galvanized steel
- Standard hanging bracket kits on HZ units for suspending the unit from field supplied hanger rods
Single Stage Compact- Up to 16.9 EER (GLHP)
- PSC blower motors for all sizes except (041, 060, 070)
- ECM constant torque blower motors standard for sizes 041, 060, 070
Unit Configuration- Left hand or right hand return air
- Top or end supply air
- Copper or Cupro-Nickel Coaxial Coil
Standard 1" Throwaway Filter with 2 side Filter Rack
1/2" Dual Density Fiber Insulation- Non-combustible, non-hydroscopic and does not support fungal growth
- Meets NFPA 90A and 90B for fire protection
- Meets the GREENGUARD Indoor Air Quality Standard
- All panels are insulated using 1.5 lb./cu.ft. density micromat fiberglass insulation for both thermal insulation and noise reduction
Compressors- Floating compressor base pan for quiet operation
- Rotary type compressors on sizes 007 through 018
- Scroll type compressors on sizes 024 through 070
TXV (Thermal Expansion Valve)- Improves refrigerant management and efficiencies
Reliability - Durability - Serviceability- Tin plated coil
- UPM circuit board with communicating features
- Completely serviceable from front of unit as well as insulated bulkheads allow the unit to be serviced during operation
DuoGuard(™) Evaporator Coil- Tin Electro-Plated Copper Tubing Hair Pins with hightech polymer coated Aluminum fins will protect the evaporator coil from most forms of corrosive elements in the airstream
Electronic Circuit Board UPM- The electronic circuit board provides protection with: Random Start of Unit, Anti-Short Cycling (5 minute delay), Alarm communicating output, Low pressure switch bypass at cold water start up
- It also monitors and communicates standard safety features/alerts/operation/protection: Low Pressure Switch, High Pressure Switch, Evaporator Freeze Protection, Water Coil Freeze Switch, Condensate Overfl ow Switch
- This circuit board can communicate with a Bosch thermostat that alerts the customer of adverse conditions
75 VA Transformer
Warranty- 1 year all parts limited warranty
- 5 year compressor limited warranty
- For full warranty details: https://www.bosch-climate.us/support-center/productwarranty-library/residential-heat-pumps-geothermalwarranty-documents.html
Field Configurable Horizontal Discharge Air Conversion- The horizontal conversion allows end blow to straight through conversion of discharge air, as factory installed straight through configuration for HZ units is no longer available.
Water Connections- All water connections are heavy duty bronze FPT fittings securely fastened to the unit corner post
Name |
Bosch 7-735-071-569 - SV024-1VTC-FRTPDD Water Source Heat Pump, 24,300 BTU, 14.2 EER, Vertical, Right Return, 208-230/1 |
Gemaire Item Number |
SV024-1VTC-FRTPDD |
Manufacturer Product Number |
7-735-071-569 |
SKU - PIM Number |
1449162400344998 |
ERP Number |
387020 |
Unit of Measure |
EA |
Weight |
177.0 Pounds (Lb) |
Length |
21.5 Inches (In) |
Width |
21.5 Inches (In) |
Height |
39.3 Inches (In) |
Country of Origin |
USA |
Brand |
Bosch |
Equipment Type |
Hydronic |
Tonnage |
2 |
Stage |
Single |
EER |
14.2-16.9 |
Refrigerant |
R-410a |
CFM |
610-1000 |
Cooling Capacity |
24300-25400 |
Heating Capacity |
18100-27400 |
Air Flow |
Vertical |
Voltage |
208 VAC |
Phase |
Single |
Cycle/Hertz |
60 Hz |
Circuit Breaker - Max Amps |
15 |
Minimum Circuit Amps |
11.1 |
Maximum Fuse Size |
15 |
Blower Motor HP |
1/4 HP |
Rated Load Amps |
7.4 |
Locked Rotor Amps |
43 |
Drain Connection Size |
3/4" |
Color |
Silver |
COP |
3.55-5 |
Warranty Offered |
Yes |
Energy Star Rated |
No |
UL Listed |
Yes |
Product Family |
SV024 |
