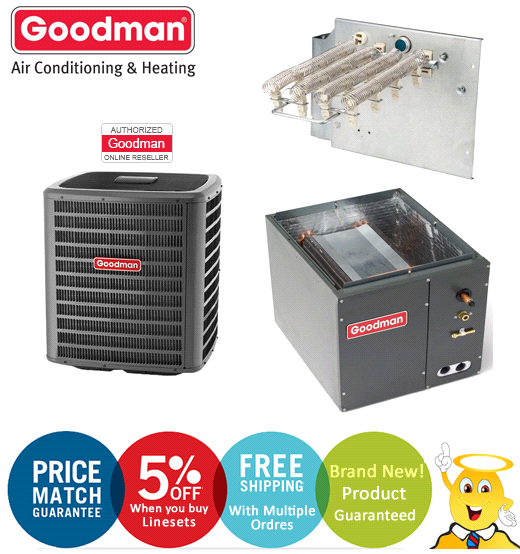

The Goodman DSZC180481 is a condenser with both heating and cooling capabilities for a split system installation. This outdoor component needs to be connected with an indoor air handler or evaporator coil to create a complete air conditioning system. This allows for many options for personalizing an HVAC system, which can be altered depending on desired energy-efficiency, cost, installation type and number of cooling and heating zones.

This two-stage model with heat pump is capable of an impressive 18 SEER efficiency when paired with the correct components. Specific ratings will depend in the indoor air handler or furnace used. This Goodman condenser features a 4 ton heating and cooling capacity at 47,000 BTU. It's usually recommended that the tonnage of the outdoor condenser be less than the indoor unit.

The DSZC18 line of split system air conditioners uses a two-stage, high-efficiency Copeland UltraTech scroll compressor. Cooling is created with the environmentally friendly R-410A chlorine-free refrigerant. The ComfortNet Communications System can be used with this model, providing convenient digital communication between Goodman HVAC systems and indoor control panels. This Goodman condenser is reliably constructed and protected by a heavy-gauge galvanized-steel cabinet with a baked on powder paint finish. Goodman has also packaged this heat pump to have the following factory-installed components:

• Bi-flow liquid-line filter drier
• Suction-line accumulator
• Compressor crankcase heater
• High-capacity muffler
• Coil and ambient temperature sensors

• R-410A chlorine-free refrigerant
• Two stage Copeland UltraTech scroll compressor
• High density foam compressor sound blanket
• Copeland® ComfortAlert diagnostics
• ComfortNet™ Communications System compatible
• Low pressure switch
• Fully charged for 15' line set length
• Factory installed filter dryer
• Liquid refrigerant return protection
• Highly efficient condenser fan motor
• Copper tube / enhanced aluminum fin coil
• AHRI Certified; ETL Listed
• Goodman® sound control top design
• Wire fan discharge grille
• Steel louver coil guard
• Baked on powder-paint finish
• Rust resistant coated screws
• Compact footprint
• Top and side maintenance access
• Single panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2001 Florida Building Code unit integrity requirements for hurricane-type winds

• Suitable for use with R-410A and R-22 refrigerants
• Rust-proof, thermoplastic drain pans feature a low water-retention design
• Check flowrater expansion device for heat pump or cooling-only applications
• Rifled copper tubing and louvered aluminum fin coils on CAPF, CAUF, and CSCF coils
• Rifled aluminum tubing and louvered aluminum fin coils on the CHPF coil
• Specification


• Mutliple branch circuit capability
• Completely assembled and tested
• Built-in overcurrent protection on all units (As indicated in the electrical data)
• Control circuit arranged to readily permit staging
• Factory-installed circuit breakers available on specific models (See electrical data)
• Fuse link secondary high-temperature limit control
• Plug-in wiring harness for easy installation into Air Handler
• Rust-resistant nickel chromium heat elements
• ETL Listed

Description

A specially formulated super-hydrophobic (water repelling) product in a convenient aerosol package for field service. The non-conductive formula has numerous applications in the management of water on non-food, non-potable water surfaces for the HVAC/R trade; surfaces that are not exposed to ongoing abrasion (hand and foot traffic).

• Slows ice formation on refrigeration coils/cold plates

• Provides added corrosion resistance to coils

• Improves corrosion resistance to system components. Examples include circuit boards, filter-driers, flow control valves, equipment covering, etc.

• Provides added corrosion protection of solder connections on low voltage circuit boards

• Self-cleaning properties reduce rate of grime on outdoor coils

• Reduces rate of bacterial growth on non-food, non-potable water surfaces

• Improves water dispersion in condensate pans

• Many other applications!

Directions

This product must be used in accordance to the following directions by HVACR professionals only.

1. Disconnect all power to the equipment before use. Do not spray near sparks, heat or open flame. Discontinue the use of power tools during use. Do not smoke while applying product.
2. Shake well before use. Use outdoors or in a well-ventilated area. Keep area ventilated until fumes are gone. Avoid breathing of fumes during application.
3. Ensure surface is clean and mostly to fully dry before applying. After a coil cleaning, the surface needs to be blown dry with an inert gas to remove excess moisture from the surface before applying Nu-Shield.
4. From a distance of 6-12 inches, spray a light coat on the surface, but no more beyond it being visibly wet. In other words, ‘Wet It and Forget It’. Contents in the canister will cover approximately 100 square feet. Depending on ambient conditions, allow a minimum of 20 minutes for Nu-Shield to dry on surface. Ensure surface appears visually dry and fumes are gone from the area before turning on power to equipment.

Note: Product needs to be applied after each coil cleaning. For best results, especially in corrosive environments, the product should be reapplied annually.

The Goodman CAPF4961D6 qualifies for a 10-Year Parts Limited Warranty.
