Description

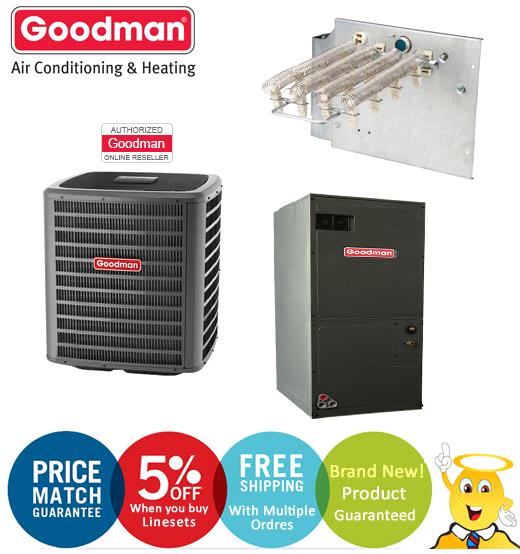

The Goodman SSZ140301 is a high-efficiency outdoor air conditioner and heat pump for a split system installation. This outdoor component needs to be connected with an indoor air handler or an electric furnace to create a complete air conditioning system. This allows for many options for personalizing an HVAC system, which can be altered depending on desired energy-efficiency, cost, installation type and more.

This model with heat pump is capable of up to 15 SEER and 8.5 HSPF ratings when paired with the correct components. Specific ratings will depend in the indoor air handler or furnace used. This Goodman condenser features a 2.5 ton nominal heating and cooling capacity at 30,000 BTU. It's usually recommended that the tonnage of the outdoor condenser be less than the indoor unit.

The SSZ14 line of split system air conditioners uses a high-efficiency scroll compressor with built-in Expanded CoreSense diagnostics. Cooling is created with the environmentally friendly R-410A chlorine-free refrigerant. This Goodman condenser is reliably constructed and protected by a heavy-gauge galvanized-steel cabinet with an architectural gray powder paint finish. It also uses SmartShift technology to ensure reliable defrosting in the coldest months. Goodman has also packaged this heat pump to have the following factory-installed components:

• Bi-flow liquid-line filter drier
• Compressor crankcase heater
• Coil and ambient temperature sensors
• Suction-line accumulator
• High-capacity muffler

• R-410A environmentally friendly refrigerant
• High-efficiency Copeland® scroll compressor
• High- and low-pressure switches
• High-quality compressor sound blanket
• 850 RPM condenser fan motor
• Liquid refrigerant return protection
• Factory-installed, bi-flow liquid line filter dryer
• Service valves with sweat connections and gauge ports
• Copper tube/enhanced aluminum fin coil
• Reliable time-initiated, temperature-terminated defrost control
• Contactor with lug connection
• Ground lug connection
• ARI Certified
• ETL Certified
• Unique Goodman® sound control top design
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Top and side compressor and tubing access
• Service ports and controls are accessible while unit is operating

  Description

The Goodman BrandAVPTC Multi-Position, Variable-Speed Air Handler includes a variable-speed ECM motor to help eliminate the cold blast of air upon heating start-up. The constant low speed fan run option helps to maintain temperature throughout the household. State of the art variable speed technology.

Standard Features:

• Compatible with the ComfortNet Communicating System family of products
• Maximum four low-voltage wires required for operation in communicating mode
• Auto configuration of the airflow and tonnage in communicating mode
• In non-communicating mode, up to 12 field-selectable airflow settings can be adjusted to optimize the systems CFM for each individual mode of operation
• R-410A refrigerant-compatible
• Factory-installed thermal expansion valves for cooling and heat pump applications
• Variable-speed ECM blower motor
• All-aluminum evaporator coil
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• Provides adjustable low CFM for efficient fan-only operation
• CFM indicator with front-panel sight glass
• Improved humidity control and comfort
• Compatible with variable-capacity heat pumps and cooling applications
• Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
• AHRI Certified; ETL Listed

Description

The Goodman HKSX08XC is an electric heat kit. It comes from the HKS line, which is intended for use with Goodman air handlers. This model uses rust-resistant nickel chromium heating elements and has 8 kW nominal heating.

This Goodman heat kit features sequences for better temperature control. It has multiple branch circuit capability and has been completely assembled and tested so our customers know they are good to go. Plus, Goodman electronic heat kits are known for being easy to install and a plug-in wiring harness makes it simple to fit into the air handler.

Features

• Sequencers for better temperature control
• Multiple branch circuit capability
• Completely assembled and tested
• Control circuitry arranged to readily permit staging
• Factory-installed circuit breakers available on specific models
• Fuse link secondary high-temperature limit control
• Plug-in wiring harness for ease of installation into air handler
• Rust-resistant nickel chromium heat elements
• ETL Listed

• Wt. Lbs.: 8
• Breaker No
• Nom. kW 8.0
• Shipping Weight 3.45
• Shipping Width 10.00
• Shipping Length 15.04
• Shipping Height 8.43

Description

A specially formulated super-hydrophobic (water repelling) product in a convenient aerosol package for field service. The non-conductive formula has numerous applications in the management of water on non-food, non-potable water surfaces for the HVAC/R trade; surfaces that are not exposed to ongoing abrasion (hand and foot traffic).

• Slows ice formation on refrigeration coils/cold plates

• Provides added corrosion resistance to coils

• Improves corrosion resistance to system components. Examples include circuit boards, filter-driers, flow control valves, equipment covering, etc.

• Provides added corrosion protection of solder connections on low voltage circuit boards

• Self-cleaning properties reduce rate of grime on outdoor coils

• Reduces rate of bacterial growth on non-food, non-potable water surfaces

• Improves water dispersion in condensate pans

• Many other applications!

Directions

This product must be used in accordance to the following directions by HVACR professionals only.

1. Disconnect all power to the equipment before use. Do not spray near sparks, heat or open flame. Discontinue the use of power tools during use. Do not smoke while applying product.
2. Shake well before use. Use outdoors or in a well-ventilated area. Keep area ventilated until fumes are gone. Avoid breathing of fumes during application.
3. Ensure surface is clean and mostly to fully dry before applying. After a coil cleaning, the surface needs to be blown dry with an inert gas to remove excess moisture from the surface before applying Nu-Shield.
4. From a distance of 6-12 inches, spray a light coat on the surface, but no more beyond it being visibly wet. In other words, ‘Wet It and Forget It’. Contents in the canister will cover approximately 100 square feet. Depending on ambient conditions, allow a minimum of 20 minutes for Nu-Shield to dry on surface. Ensure surface appears visually dry and fumes are gone from the area before turning on power to equipment.

Note: Product needs to be applied after each coil cleaning. For best results, especially in corrosive environments, the product should be reapplied annually.
