Product Name :

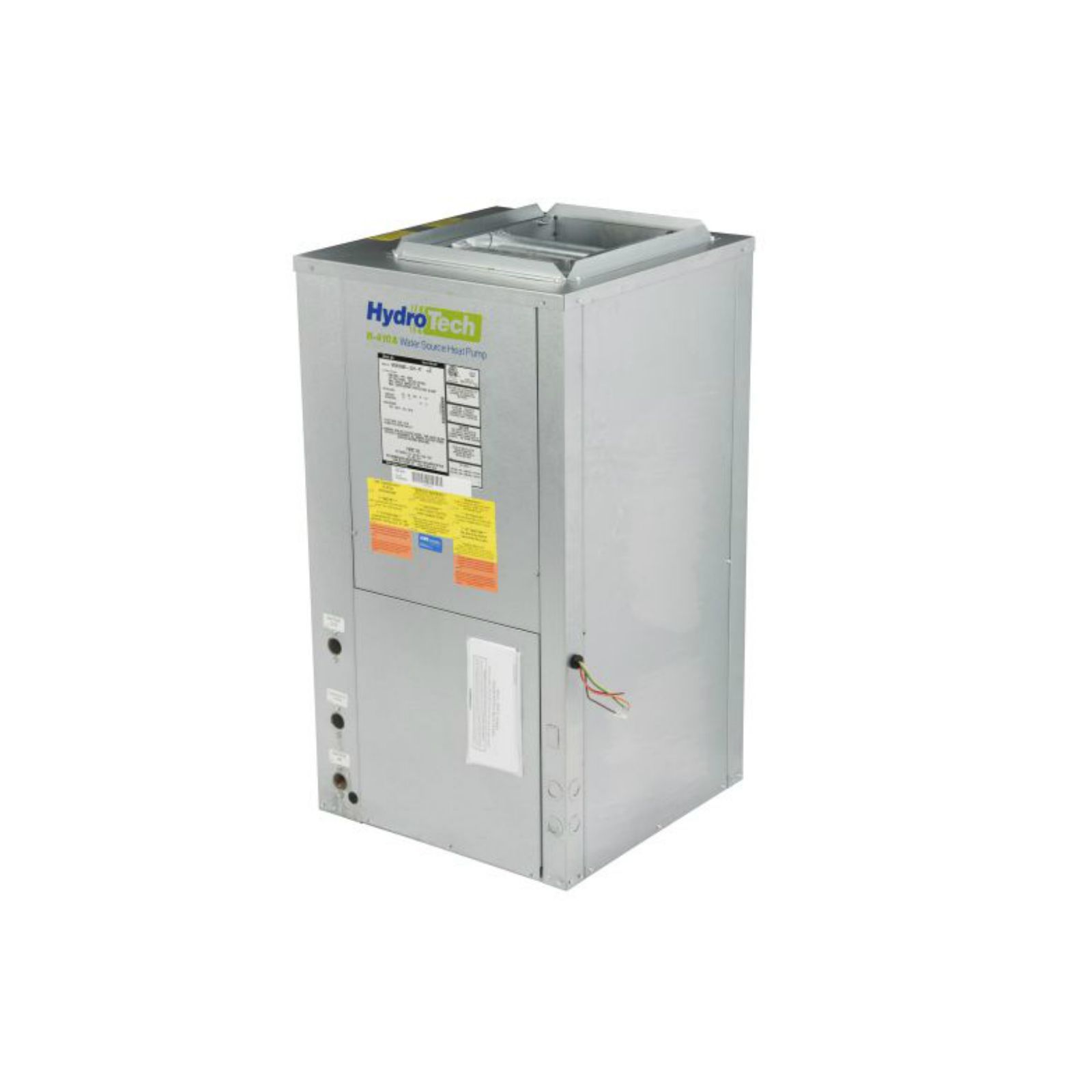

First Co 79KF426VL - WSVXB042N-6LH-FT 3 1/2 Ton Vertical Water Source Heat Pump, Left Hand, Cupronickel,R410A,208-230/1,X13
|
|
|
|
|
|
Choose QTY
:
|
Required
|
|
|
|
|
|
The WSVX Series (X-ECM ) Vertical Water Source Heat Pumps are available in eight sizes from 1 1/2 Ton to 5 Ton. Optional voltages include208-230/1/60, 265/1/60 for all sizes, and 208-230/3/60, 460/3/60 for 3 Ton to 5 Ton
Features
- All units operate with environmentally friendly R410A refrigerant.
- Cabinets insulated with 3/4" Tuf-Skin RX™ treated with an anti-microbial agent.
- Non-corrosive Thermoplastic Condensate Pan, sloped for positive drainage.
- High and Low pressure Service Ports.
- Refrigerant Filter-drier and Discharge Muffler.
- Coaxial Water-To-Refrigerant Heat Exchanger.
- Heat exchanger available in Copper or Cupronickel
- Digital Control Module (DCM).
- Multi-speed blower motor .
- Panel-mounted FPT Water Connections.
- High efficiency rotary, scroll or reciprocating compressor.
- System reversing valve (4-way )
- Large Removable Panels for Service access.
- 50 VA Transformer.
Name |
First Co 79KF426VL - WSVXB042N-6LH-FT 3 1/2 Ton Vertical Water Source Heat Pump, Left Hand, Cupronickel,R410A,208-230/1,X13 |
Item Number |
WSVXB042N-6LH-FT |
Manufacturer Product Number |
79KF426VL |
SKU - PIM Number |
65499527847 |
ERP Number |
389494 |
Unit of Measure |
EA |
Weight |
260.0 Pounds (Lb) |
Length |
21.5 Inches (In) |
Width |
21.5 Inches (In) |
Height |
43.3 Inches (In) |
Country of Origin |
USA |
Brand |
First Company |
Equipment Type |
Hydronic |
Tonnage |
3.5 |
Stage |
Single |
EER |
14 |
Refrigerant |
R-410a |
CFM |
920-1460 |
Cooling Capacity |
40980 |
Heating Capacity |
48120 |
Air Flow |
Vertical |
Voltage |
208-230 VAC |
Phase |
Single |
Cycle/Hertz |
60 Hz |
Rated Current Amps |
15.7 |
Circuit Breaker - Min Amps |
27 |
Circuit Breaker - Max Amps |
40 |
Minimum Circuit Amps |
27 |
Maximum Fuse Size |
40 |
Blower Motor HP |
1/2 HP |
Rated Load Amps |
40 |
Locked Rotor Amps |
88 |
Drain Connection Size |
3/4" |
Color |
Silver |
COP |
4.5 |
Warranty Offered |
Yes |
Energy Star Rated |
No |
UL Listed |
Yes |
Product Family |
79KF |
Features All units operate with environmentally friendly R-410A refrigerant. Cabinets insulated with ¾” Tuf-Skin RX™ treated with an anti-microbial agent. Non-corrosive Thermoplastic Condensate Pan, sloped for positive drainage. High and Low pressure Service Ports. Refrigerant Filter-drier and Discharge Muffler. Coaxial Water-To-Refrigerant Heat Exchanger. Heat exchanger available in Copper or Cupronickle Digital Control Module (DCM). Multi-speed blower motor . Panel-mounted FPT Water Connections. High efficiency rotary, scroll or reciprocating compressor.
Quality HVAC Products
Leader, Innovator, and Trusted Supplier
Since our founding in 1966 to provide the rapidly growing HVAC industry with an independent source of fan coils, First Co. has earned an enviable reputation as a leader, innovator, and trusted supplier of a broad range of quality HVAC products.
Manufacturing:
Our company's production facilities are located in Dallas, Texas where we have steadily grown to present size of more than 400,000 square feet. The expansive complex boasts both the most up-to-date manufacturing equipment available and a stable, experienced, highly skilled workforce.
Manufacturing capabilities range from the ability to produce short runs of specialized products built to customer specifications, to the kind of high volume production capacity required in manufacturing the standard two to twenty ton units that comprise the First Co. line of commercial and residential air handlers.
Engineering:
Engineered systems produced by First Co. are characterized by a commitment to quality and performance that sets a standard of excellence few companies can match.
Visitors to the First Co. Engineering Department will find a seasoned team of professional engineers and support personnel along with a full complement of the latest computerized development systems and test equipment including state-of-the-art indoor and outdoor environmental test chambers, and a sophisticated wind tunnel.
First Co. products are warranted to be free from defects in material and workmanship under normal use and maintenance for a period of one year from the date of original installation or 18 months from the date of manufacture. 5 year parts for the first co water source heat pumps.
|
