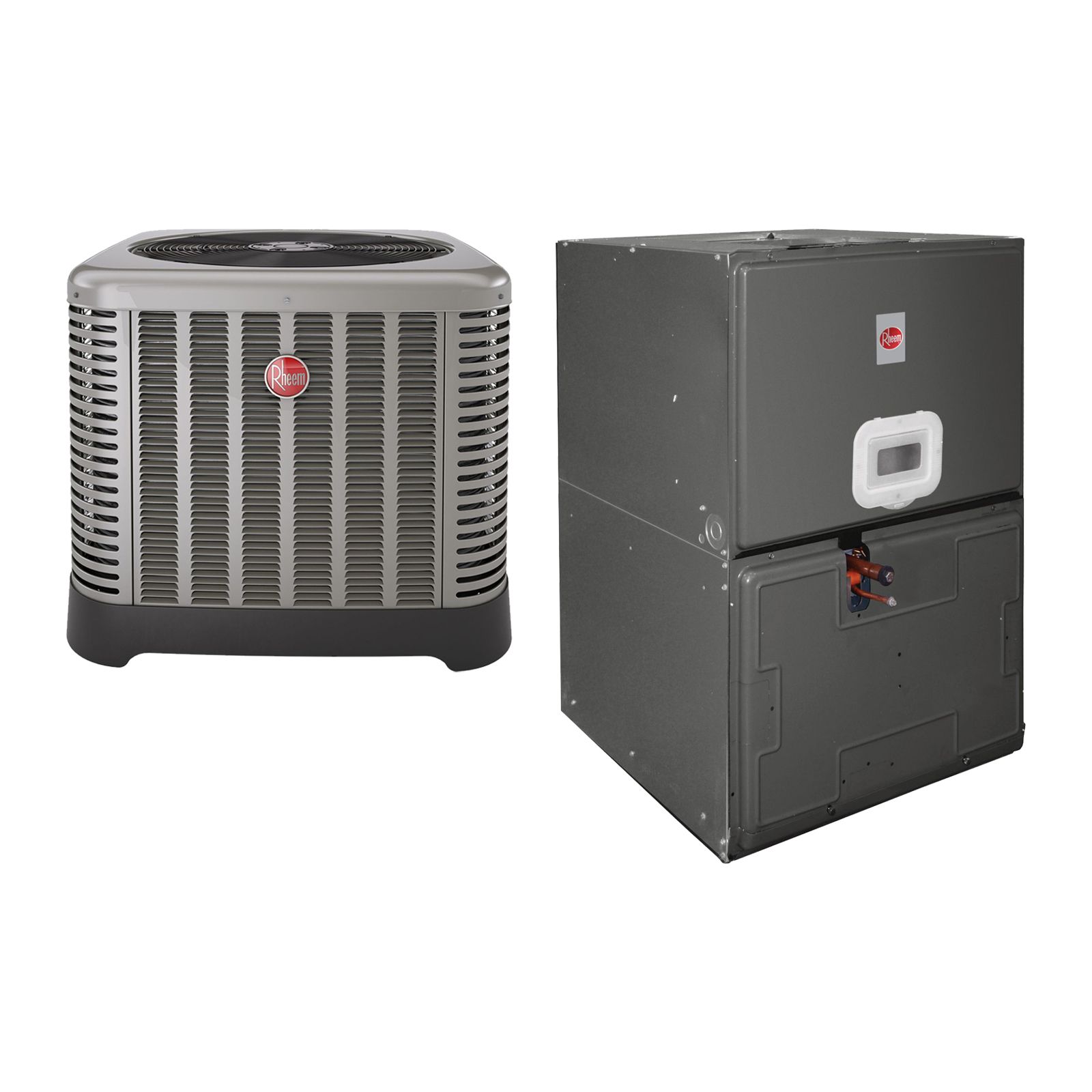

System includesOne RP1424AJ1NA Rheem - Classic 2 Ton 14 SEER Heat Pump Condenser, 208-230/1/60
The RP14 is our 14 SEER heat pump and is part of the Rheem heat pump product line that extends from 14 to 20 SEER. This highly featured and reliable heat pump is designed for years of reliable, efficient operation when matched with Rheem indoor aluminum evaporator coils and furnaces or air handler units with aluminum evaporators.
- New composite base pan - dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed
- Improved tubing design - reduces vibration and stress, making unit quieter and reducing opportunity for leaks
- Optimized defrost characteristics - decrease defrosting and provide better home comfort
- Powder coat paint system - for a long lasting professional finish
- Optimized reversing valve sizing - improves shifting performance for quieter unit operation and increased life of the system
- Enhanced mufflers - help to dissipate vibration energy for quieter unit operation
- Scroll compressor - a sound abating feature added to the compressor significantly reduces noise when system transitions in and out of defrost mode
- Modern cabinet aesthetics - increased curb appeal with visually appealing design
- Curved louver panels - provide ultimate coil protection, enhance cabinet strength, and increased cabinet rigidity
- Optimized fan orifice - optimizes airflow and reduces unit sound
- Rust resistant screws - confirmed through 1500-hour salt spray testing
- PlusOneā¢ Expanded Valve Space - 3"-4"-5" service valve space - provides a minimum working area of 27-square inches for easier access
- Integrated heat pump lift receptacle - allows standard CPVC stands to be inserted into the base
- PlusOneā¢ Triple Service Access - 15" wide, industry leading corner service access - makes repairs easier and faster. The two fastener removable corner allows optimal access to internal unit components. Individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly
- Diagnostic service window with two-fastener opening - provides access to the TXV valves and the heat pump reversing valve before opening the unit.
- External gauge port access - allows easy connection of "low-loss" gauge ports
- Single-row condenser coil - makes unit lighter and allows thorough coil cleaning to maintain "out of the box" performance
- 35% fewer cabinet fasteners and fastener-free base - allow for faster access to internal components and hassle-free panel removal
- Service trays - hold fasteners or caps during service calls
- QR code - provides technical information on demand for faster service calls
- Fan motor harness with extra-long wires - allows unit top to be removed without disconnecting fan wire
And
One RBHP-17J06SH1 Rheem - RBHP Series - Multiposition Air Handler With X-13 (ECM) Motor, Up To 16 SEER, R410A, 5 kW Electric Heat
Rheem High Efficiency Air Handler - RBHP- Series X-13 (ECM) Motor - Efficiencies up to 16 SEER
RBHP- AIR HANDLERS
- Models featuring R-22 Refrigerant
- Models featuring Earth-Friendly R-410A Refrigerant
- Models featuring Electric Heat without Indoor Cooling Coil
