Description

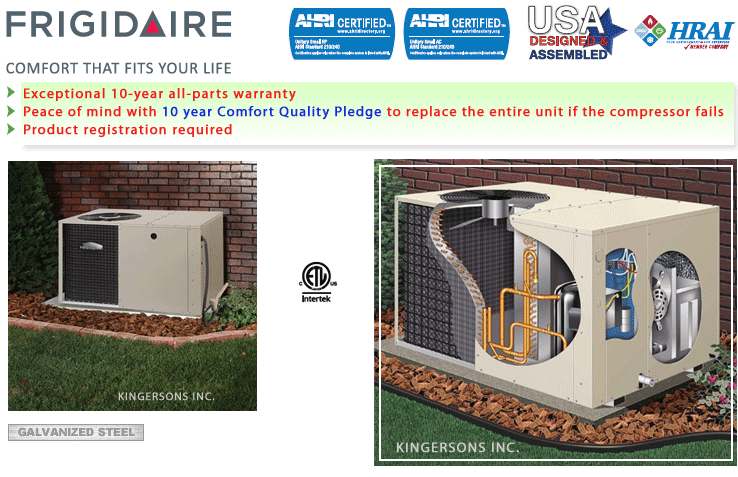

Q7RF Series Two-Stage Packaged Heat Pump
16 SEER, 12 EER,
8.2 HSPF
2 thru 5 Ton Units
Cooling: 24,000 to 55,00 BTU/H
Heating:
22,400 to 56,000 BTU/H
FEATURES and
BENEFITS
·
State-of-the-Art Copeland Ultra-Tech II Scroll Compressor:
Provides two stage heat/cool.
·
Galvanized Steel Cabinetry: Polyester urethane coat finish
that passes 950 hours of salt spray per ASTM Std. B117.
·
Micro-Channel Indoor and Outdoor Coils: Designed to
optimize heat transfer, increase durability and reliability, and reduce weight
and refrigerant charge needed.
·
Patented Hot Gas Defrost: Ensures complete defrost every
time.
·
5-Speed Energy Efficient ECM Blower: High static motor that
delivers the right airflow.
·
Accessories: Heater kits, high wind kits, duct collars, and
more.
·
A Wire Guard Coated with Earth Friendly Epoxy and Mesh Hail
Guard That Will Never Rust: Protects the coil from being damaged by balls, lawn
mowers, hail, etc.
·
Designed to Make Servicing Easier: For the contractor,
access panels are provided to all major components.
·
0" Clearance: To combustibles on duct side of the unit
allows for installations in tight areas.
·
Easy Access: To evaporator for cleaning and general
maintenance.
·
Drain Trap: Design optimizes drainage
capabilities.
·
Installation-Friendly: Designed to fit in the rear of most
pickup trucks. Notch support rails allow easy installation on roof curbs and
stands.
·
Compact Footprint and Profile: Make the Q7 Series easy to
install and transport.
·
High and Low Pressure Switches: Added compressor
protection.
·
Suction Accumulator: Protection from liquid flood back and
future compressor failures.
·
Demand Defrost Standard: Provides additional energy savings
in heating by defrosting only when necessary.
·
Three Minute Restart Time Delay: When the unit shuts down,
a three minute delay keeps the unit from restarting, eliminating the highest
cause for compressor failure.
·
Quiet Operation and Low Vibration: Swept-wing fan blade
combined with custom Venturi condenser orifice.
10-Year Limited Parts
Warranty
A manufacturer’s confidence is reflected in its
warranty. That is why we offer one of the best warranties in the heating and
cooling business – 10 years if the product is registered within 60 days of
installation or occupancy. Registration is required for maximum warranty
coverage.
