Product Name :
Frigidaire - Q7RFX36K - 3 Ton 16 SEER, Two-Stage Packaged Heat Pump, 208-230/1/60, R410A
|
|
|
|
|
|
|
|
|
|
Choose QTY
:
|
Required
|
|
|
|
|
|
|

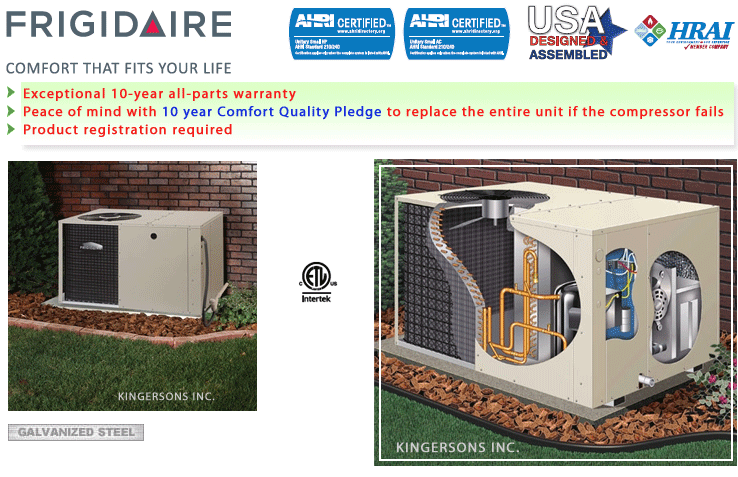

DescriptionQ7RF Series Two-Stage Packaged Heat Pump 16 SEER, 12 EER, 8.2 HSPF 2 thru 5 Ton Units Cooling: 24,000 to 55,00 BTU/H Heating: 22,400 to 56,000 BTU/H FEATURES and BENEFITS- State-of-the-Art Copeland Ultra-Tech II Scroll Compressor: Provides two stage heat/cool.
- Galvanized Steel Cabinetry: Polyester urethane coat finish that passes 950 hours of salt spray per ASTM Std. B117.
- Micro-Channel Indoor and Outdoor Coils: Designed to optimize heat transfer, increase durability and reliability, and reduce weight and refrigerant charge needed.
- Patented Hot Gas Defrost: Ensures complete defrost every time.
- 5-Speed Energy Efficient ECM Blower: High static motor that delivers the right airflow.
- Accessories: Heater kits, high wind kits, duct collars, and more.
- A Wire Guard Coated with Earth Friendly Epoxy and Mesh Hail Guard That Will Never Rust: Protects the coil from being damaged by balls, lawn mowers, hail, etc.
- Designed to Make Servicing Easier: For the contractor, access panels are provided to all major components.
- 0" Clearance: To combustibles on duct side of the unit allows for installations in tight areas.
- Easy Access: To evaporator for cleaning and general maintenance.
- Drain Trap: Design optimizes drainage capabilities.
- Installation-Friendly: Designed to fit in the rear of most pickup trucks. Notch support rails allow easy installation on roof curbs and stands.
- Compact Footprint and Profile: Make the Q7 Series easy to install and transport.
- High and Low Pressure Switches: Added compressor protection.
- Suction Accumulator: Protection from liquid flood back and future compressor failures.
- Demand Defrost Standard: Provides additional energy savings in heating by defrosting only when necessary.
- Three Minute Restart Time Delay: When the unit shuts down, a three minute delay keeps the unit from restarting, eliminating the highest cause for compressor failure.
- Quiet Operation and Low Vibration: Swept-wing fan blade combined with custom Venturi condenser orifice.
Specifications| Name | Frigidaire 922012 - Q7RFX36K - 3 Ton 16 SEER, Two-Stage Packaged Heat Pump, 208-230/1/60, R410A |
|---|
| Brand | Frigidaire |
|---|
| Product SKU | Q7RFX36K |
|---|
| Manufacturer Product Number | 922012 |
|---|
| SKU - PIM Number | 6280572766271343 |
|---|
| Item ID | 374772 |
|---|
| Unit of Measure | EA |
|---|
| Weight | 294.0 Pounds (Lb) |
|---|
| Length | 49.0 Inches (In) |
|---|
| Width | 35.0 Inches (In) |
|---|
| Height | 30.2 Inches (In) |
|---|
| Hazardous Material | No |
|---|
| EPA Cert Required | No |
|---|
| Country of Origin | USA |
|---|
| Equipment Type | Heat Pump |
|---|
| Stage | Two |
|---|
| SEER | 16 |
|---|
| EER | 12 |
|---|
| IEER | 0 |
|---|
| Refrigerant | R-410a |
|---|
| HSPF | 8.2 |
|---|
| Cooling Capacity | 36000 |
|---|
| Heating Capacity | 34600 |
|---|
| Voltage | 208-230 VAC |
|---|
| Phase | Single |
|---|
| Cycle/Hertz | 60 |
|---|
| Rated Current Amps | 21.6 |
|---|
| Minimum Circuit Amps | 25.4 |
|---|
| Maximum Fuse Size | 40 |
|---|
| Blower Motor HP | 1/2 HP |
|---|
| Condenser Motor HP | 1/4 HP |
|---|
| Rated Load Amps | 15.3 |
|---|
| Locked Rotor Amps | 83 |
|---|
| Drain Connection Size | 3/4" |
|---|
| Certifications | ASTM Std. B117 |
|---|
| Color | Gray |
|---|
| Compressor | Scroll |
|---|
| Number of Fan Blades | 1 |
|---|
| Sound Level (dBA) | 71 |
|---|
| Warranty Offered | Yes |
|---|
| Energy Star Rated | Yes |
|---|
| UL Listed | No |
|---|
| Drain Connections | 1 |
|---|
| Product Family | Q7RF Series |
|---|
| Tonnage | 3 |
|---|
