Brand : Central AC/Heat Pump
hvac prices

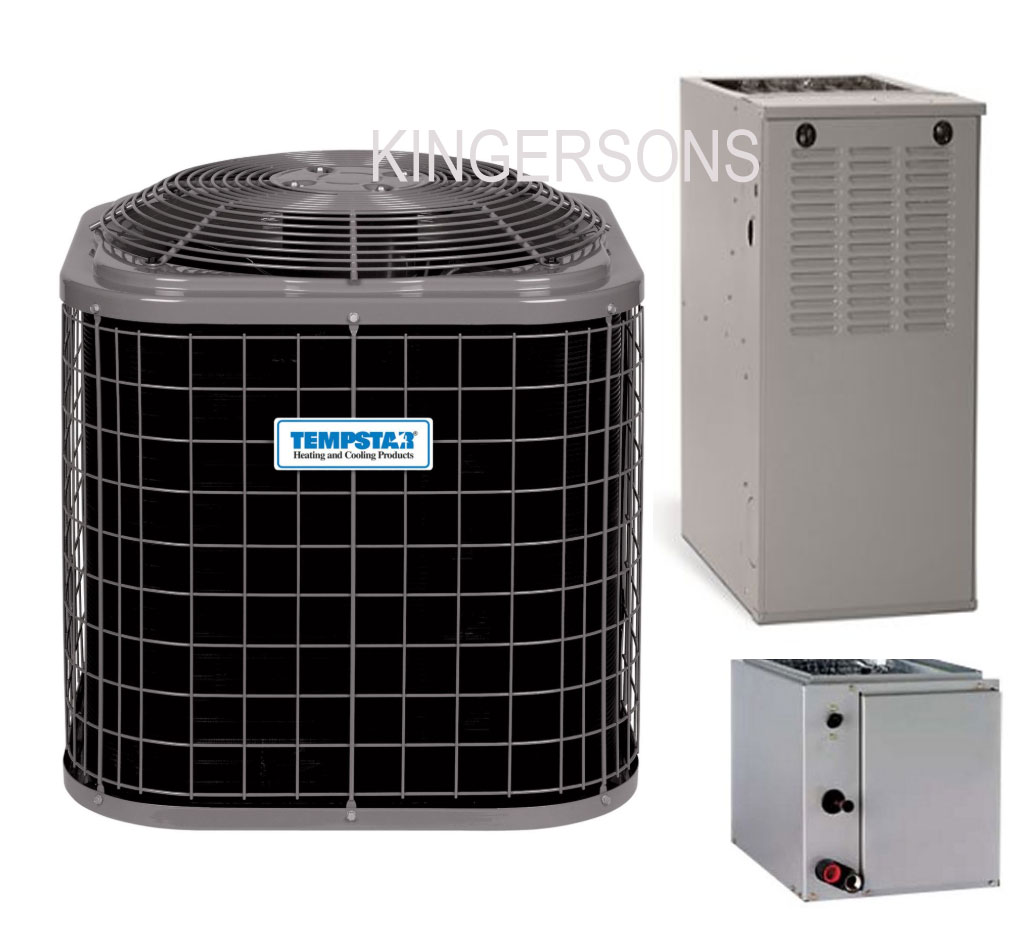

Product Name : 4 Ton TEMPSTAR TCA748GKA END4X60L24A F80CTL1102120A Variable Speed, Two-Stage Gas Furnace17 SEER Two Stage A/C Condenser R410A

Item# :
TCA748GKA END4X60L24A F80CTL1102120A
Your Price :
Choose QTY :
heat pump splits

Description

HIGH EFFICIENCY 17 SEER TWO-STAGE AIR CONDITIONER WITH OBSERVER COMMUNICATING CONTROL SYSTEM
2 THRU 5 TONS SPLIT SYSTEM
208/230 Volt, 1-phase, 60 Hz

REFRIGERATION CIRCUIT
  • Copeland Scroll® Ultratech compressors on all models
  • Filter-drier supplied with every unit for field installation
  • External high and low refrigerant service ports
  • High and low pressure switches
  • Copper tube / aluminum fin coil
PERFORMANCE
  • Self-configuring installation capabilities with Observer Communicating Wall Control
  • Outdoor temperature sensor factory installed
  • Ball Bearing PSC fan motors on all models
  • High performance compressor sound shield standard
  • Isolation compressor grommets
EASY TO INSTALL AND SERVICE
  • Text based diagnostics with Observer Communicating Wall Control
  • Only 2 control wires required from communicating indoor unit to condenser
  • Easy access service valves on all models
  • Innovative control box design
  • Only two screws to access control panel
  • Factory charged with R-410A refrigerant
BUILT TO LAST
  • High gloss, baked-on powder coat finish over galvanized steel
  • Post-painted (black) coil fins
  • Coated, weather-resistant cabinet screws
  • Coated inlet grille with 3/8” (10mm) spacing for extra protection
  • Corner posts for extra strength and style
WARRANTY*
  • 10 year No Hassle Replacement limited warranty
  • 5 year parts limited warranty (including compressor and coil)
- With timely registration, an additional 5 year partslimited warranty (including compressor and coil)
* Applies to original purchaser/homeowner, some limitations may apply. See Warranty certificate for complete details.

Description

Cabinet Features:
  • Removable Front Access Panel
  • Easy Slide out Coil for Inspection
  • UV Light Knock Out Provided On Cabinet
  • Hemmed Flanges for Safer Handling
  • Foil Faced Insulation
  • Non Sweat Cabinet, Even At Extreme Conditions
  • Cabinets Meet or Exceed 2% Air Leakage Codes
  • Sturdy, 22 Gauge, Pre-Painted Steel Cabinet
Coil Features:
  • Copper Tube, Aluminum Fin a Coil with Latest High Tech Fin Design
  • Bolt On TXV Metering Device Factory Installed On All Models
  • TXV and Manifold Positioned To the Side for Easier Cleaning
  • Innovative Drain Pan Design for Complete Water Removal
  • Two Condensate Drain Connections
  • 2 Piece Delta Plate for Easier Removal and Cleaning
Multiposition Installation:
  • Upflow, Downflow, or Horizontal
  • Upflow Cabinet Widths and Horizontal Cabinet Depths Match Flush with ICP Gas Furnaces
  • Industry Exclusive Tin Coated Copper Main Tubing for Additional Corrosion Protection for Environmentally Sound R410A Systems
Warranty
  • 5 Year Coil, 5 Year Parts

Description

Features
  • 80% AFUE
  • Cabinet air leakage less than 2.0% at 1.0 in. W.C. and cabinet air leakage less than 1.4% at 0.5 in. W.C. when tested in accordance with ASHRAE standard 193
  • Supports two-stage cooling units
  • ION™ Communicating Control System
  • Observer® Communicating Control System
  • Flame roll-out sensors standard
  • Category I venting
  • Blocked vent switch
  • Dehumidification feature in cooling
  • 24 VAC humidifier terminal electronic air cleaner terminal
  • Low NOx units are designed for California installations and meet 40 ng/J NOx emissions. Can be installed in air quality management districts with a 40 ng/J NOx emissions requirement.
Tougher
  • Variable speed ECM blower motor
  • Adjustable heating blower OFF delay
  • Factory set blower ON delay
  • RPJ Aluminized steel heat exchanger
  • High temperature limit control prevents overheating
  • Direct ignition with Silicon Nitride ignitor
  • One piece prepainted steel cabinet
Quieter
  • Two-stage operation
  • Two-stage induced draft blower
  • In-shot burners
  • Insulated blower compartment
Easier to install and serivce
  • 33-1/3” (847mm) high, for ease of installation
  • Quarter turn knobs for easy door removal and secure attachment
  • Factory shipped for natural gas, with propane gas conversion kits available
  • Four position - upflow/downflow/horizontal (left/right) installation
  • Three position vent elbow capability
  • Through the casing flue pipe for counterflow applications
  • Common venting with other Category I appliances
  • Masonry chimney adapter available
  • Self diagnostics
  • Slide out blower assembly
Limited Warranty
  • 10 year No Hassle Replacement™ limited warranty
  • Lifetime heat exchanger limited warranty
  • 5 year parts limited warranty
- With timely registration, an additional 5 year parts limited warranty
* For residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.

Features and Specification

Heating StagesTwo Stage
Height33.2500
Ignition TypeHot Surface
Includes Filter RackNo
Length29.0000
Energy Star RatedNo
Cubic Measurement11.7183
Equipment TypeFurnace
Gas ConnectionWhite Rodgers
ETL ListedNo
Fuel TypeNatural Gas
Full Load Amps12.8
UL ListedNo
UOMEA
UPCSee Optical
Voltage115 VAC
Warranty OfferedYes
Width21.0000
StageTwo
OPT Code1PF80CTL1102120A
PhaseSingle
Product FamilyF80CTL
Weight152.0000
BrandTempstar
Air FlowMulti-Position
Blower Motor HP1 HP
Blower Motor RPM1200
Blower Motor SpeedsVariable
Blower Motor TypeECM
Blower Wheel11" x 10"
BTU Input72500, 72500-110000
BTU Output59000, 59000-89000
CFM1295, 1295-2155
CFM Heating1295, 1295-1465


LIMITED WARRANTY*
  • 10 year parts limited warranty (including compressor and coil) with timely registration
  • 5 year parts limited warranty if not registered within 90 days of original installation
